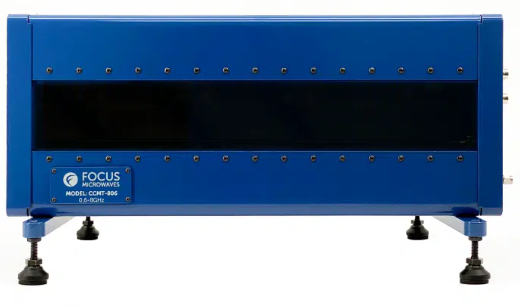

Focus 提供最深入的寬帶基波和諧波無源調諧器產品組合。無源阻抗調諧器在給定頻率范圍內在史密斯圓圖上產生可控的反射因子(阻抗)。Focus 使用兩種基本技術：
從100MHz到120GHz，我們使用滑動螺釘技術，將反射探頭插入低損耗開槽傳輸線。
對于10MHz至170MHz的頻率，我們采用集總元件技術，將可變電容器與優化長度的同軸電纜連接起來。
大多數 Focus 無源調諧器使用持久耐用的射頻探頭，這些探頭旨在實現最佳調諧精度，并且沒有雜散諧振。多個探頭的組合在一個調諧器中提供超寬帶覆蓋。所有 Focus 無源調諧器均由 LAN 控制，并包括板載阻抗合成固件。
Sub 18GHz 調諧器列表:
| 型 | 最小頻率 | 最大頻率 | 駐波比 | 連接器類型 | 類型 |
| C101 | 0.1 GHz | 1 GHz | ≥ 10:1 (typ. 40:1) | 7/16, APC-7, N | f0 |
| C1260 | 6 GHz | 12 GHz | ≥ 40:1 (typ. 60:1) | 3.5mm | f0 |
| C1804 | 0.4 GHz | 18 GHz | ≥ 30:1 (typ. 40:1) | APC-7, N | f0 |
| C1806 | 0.6 GHz | 18 GHz | ≥ 10:1 (typ. 20:1) | APC-7, N | f0 |
| C1806S | 0.6 GHz | 18 GHz | ≥ 10:1 (typ. 20:1) | APC-7, N | f0 (Shielded) |
| C1807 | 0.7 GHz | 18 GHz | ≥ 10:1 (typ. 25:1) | APC-7, N | f0 |
| C1808 | 0.8 GHz | 18 GHz | ≥ 10:1 (typ. 15:1) | APC-7, N | f0 |
| C1818 | 1.8 GHz | 18 GHz | ≥ 10:1 (typ. 20:1) | APC-7, N | f0 |
| C302 | 0.2 GHz | 3 GHz | ≥ 10:1 (typ. 30:1) | 7/16, APC-7, N | f0 |
| C304 | 0.4 GHz | 3 GHz | ≥ 10:1 (typ. 40:1) | 7/16, APC-7, N | f0 |
| C308 | 0.8 GHz | 3 GHz | ≥ 10:1 (typ. 20:1) | 7/16, APC-7, N | f0 |
| C606 | 0.6 GHz | 6 GHz | ≥ 30:1 (typ. 40:1) | 7/16, APC-7, N | f0 |
| C606S | 0.6 GHz | 6 GHz | ≥ 30:1 (typ. 40:1) | 7/16, APC-7, N | f0 (Shielded) |
| C804 | 0.4 GHz | 8 GHz | ≥ 10:1 (typ. 20:1) | 7/16, APC-7, N | f0 |
| C806 | 0.6 GHz | 8 GHz | ≥ 50:1 (typ. 80:1) | 3.5mm | f0 |
| C806R | 0.6 GHz | 8 GHz | ≥ 30:1 (typ. 35:1) | 7/16, APC-7, N | f0 |
| C806RS | 0.6 GHz | 8 GHz | ≥ 30:1 (typ. 35:1) | 7/16, APC-7, N | f0 (Shielded) |
| C806S | 0.6 GHz | 8 GHz | ≥ 50:1 (typ. 80:1) | 3.5mm | f0 (Shielded) |
| C807 | 0.8 GHz | 7 GHz | ≥ 30:1 (typ. 35:1) | 7/16, APC-7, N | f0 |
| C808 | 0.8 GHz | 8 GHz | ≥ 30:1 (typ. 40:1) | 7/16, APC-7, N | f0 |
| L1007 | 0.7 GHz | 10 GHz | 10:1 ~ 100:1 | APC-7, N | f0, 2f0 |
| L1208 | 0.8 GHz | 12 GHz | 10:1 ~ 100:1 | APC-7, N | f0; 2f0 |
| L1218 | 1.8 GHz | 12 GHz | 10:1 ~ 100:1 | APC-7; N | f0; 2f0 |
| L1804 | 0.4 GHz | 18 GHz | 10:1 ~ 100:1 | APC-7, N | f0, 2f0 |
| L1807 | 0.7 GHz | 18 GHz | 10:1 ~ 100:1 | APC-7, N | f0. 2f0 |
| L1808 | 0.8 GHz | 18 GHz | 10:1 ~ 100:1 | APC-7, N | f0, 2f0 |
| L1818 | 1.8 GHz | 18 GHz | 10:1 ~ 100:1 | APC-7, N | f0, 2f0 |
| L302 | 0.2 GHz | 3 GHz | 10:1 ~ 100:1 | 7/16, APC-7, N | f0, 2f0 |
| L804 | 0.4 GHz | 8 GHz | 10:1 ~ 100:1 | 7/16, APC-7, N | f0, 2f0 |
| L808 | 0.8 GHz | 8 GHz | 10:1 ~ 100:1 | 7/16, APC-7, N | f0, 2f0 |
| M1007 | 0.7 GHz | 10 GHz | 10:1 ~ 100:1 | APC-7, N | f0, 2f0, 3f0 |
| M1204 | 0.4 GHz | 12 GHz | 10:1 ~ 100:1 | APC-7, N | f0, 2f0, 3f0 |
| M1208 | 0.8 GHz | 12 GHz | 10:1 ~ 100:1 | APC-7, N | f0, 2f0, 3f0 |
| M1218 | 1.8 GHz | 12 GHz | 10:1 ~ 100:1 | APC-7, N | f0, 2f0, 3f0 |
| M1804 | 0.4 GHz | 18 GHz | 10:1 ~ 100:1 | APC-7, N | f0, 2f0, 3f0 |
| M1807 | 0.7 GHz | 18 GHz | 10:1 ~ 100:1 | APC-7, N | f0, 2f0, 3f0 |
| M1808 | 0.8 GHz | 18 GHz | 10:1 ~ 100:1 | APC-7, N | f0, 2f0, 3f0 |
| M1818 | 1.8 GHz | 18 GHz | 10:1 ~ 100:1 | APC-7, N | f0, 2f0, 3f0 |
| M804 | 0.4 GHz | 8 GHz | 10:1 ~ 100:1 | 7/16, APC-7, N | f0, 2f0, 3f0 |
| M807 | 0.7 GHz | 8 GHz | 10:1 ~ 100:1 | 7/16, APC-7, N | f0, 2f0, 3f0 |
| M808 | 0.8 GHz | 8 GHz | 10:1 ~ 100:1 | 7/16, APC-7, N | f0, 2f0, 3f0 |
