MYMGK1R804FRSR/MYMGK00504ERSR是微型MonoBK?，稱為“Mono Block”，用于嵌入式應用的非隔離負載點(PoL) DC-DC電源轉換器。小巧的外形尺寸僅為9.0 x 7.5 x 5.0 mm。
應用包括為FPGA/CPU、數據通信/電信系統、分布式總線架構(DBA)、可編程邏輯和混合電壓系統供電。
轉換器的輸入電壓范圍為4.5至8.0 vdc (MYMGK1R804FRSR)或8.0至15.0Vdc (MYMGK00504ERSR)，最大輸出電流為4A。基于固定頻率同步降壓轉換器開關拓?fù)?，該高功率轉換效率PoL模塊具有可設置輸出電壓0.7至1.8Vdc (MYMGK1R804FRSR)或0.7至5.0Vdc (MYMGK00504ERSR)，開/關控制和電源良好信號輸出。
這些轉換器還包括欠壓鎖定(UVLO)，輸出短路保護和過流保護。

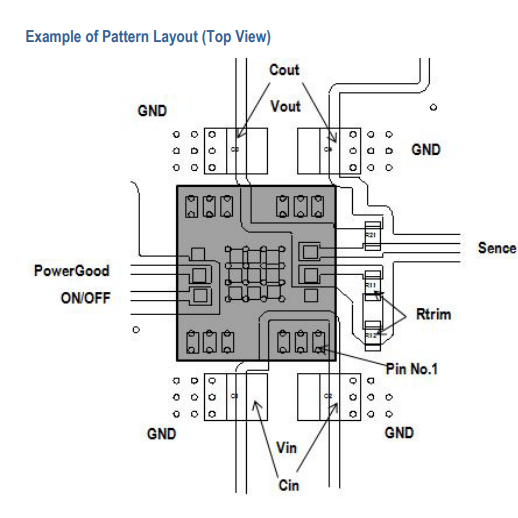

規格參數
| Iout (A)Max | 4A |
|---|---|
| Vin(V) | 4.5V to 8V |
| Vin(V)typ | 5V |
| Vout (V) | 0.7V to 1.8V |
| Vout (V)typ | 1V |
| 線性調整率 (%) | -1％ to 1％ |
| 負載調整率 (%) | -1％ to 1％ |
| 輸出數 (#) | 1 |
| 效率(%) | 93％ |
| 開關頻率 (kHz) | 250kHz |
| 尺寸 (mm)W | 7.5mm |
| 尺寸 (mm)L | 9.0mm |
| 尺寸 (mm)T | 5.0mm |
| 工作溫度(degC) | -40℃ to 85℃ |
| Circuit topology | Buck(Step-down) |
| 封裝 | SMD |
| 類型 | Modules (integrated components) |
| 產品系列 | MYMGK |
| 產品系列特點 | MYMGK series which is POL(Point of Load) is single output MonoBK. |
| 品牌 | Murata |
規格指南：
| PART NUMBER | OUTPUT | INPUT | Efficienc (%) | ONOFF | PACKAGE | ||||||||
| Vout (Vdc) | out (Amax) | Power (W) | RIN typ (%of Vout) | Regulation(max | Vin typ (Vdc) | Rang (Vdc) | in no load (mA) | lin full load A) | (mm) | ||||
| Line(%) | Load(%) | ||||||||||||
| MYMGK1R804FRSR | 0.7-1.8 (typ-1.8V) | 4 | 7 | 0.5 | ±1.0 | ±1.0 | 5 | 4.5-8.0 | 13 | 1.6 | 93 | Yes (Positive) | 9.0x7.5x5.0 |
| MYMGK00504ERSR | 0.7-5.0 (typ-5.0V) | 4 | 20 | 0.4 | ±1.0 | ±1.0 | 12 | 8-15 | 24 | 1.8 | 96 | Yes (Positive) | 9.0x7.5x5.0 |
| MYMGK1R804FRSRD | 0.7-1.8 (yp.1.8W | 4 | 7 | 0.5 | ±1.0 | ±1.0 | 5 | 4.5-8.0 | 13 | 1.6 | 93 | Yes (Positive) | 9.0x7.5x5.0 |
| MYMGK00504ERSRD | 0.7-5.0 (p:5.0V | 4 | 20 | 0.4 | ±1.0 | ±1.0 | 12 | 8-15 | 24 | 1.8 | 96 | Yes (Positive) | 9.0x7.5x5.0 |
