- 產品詳情

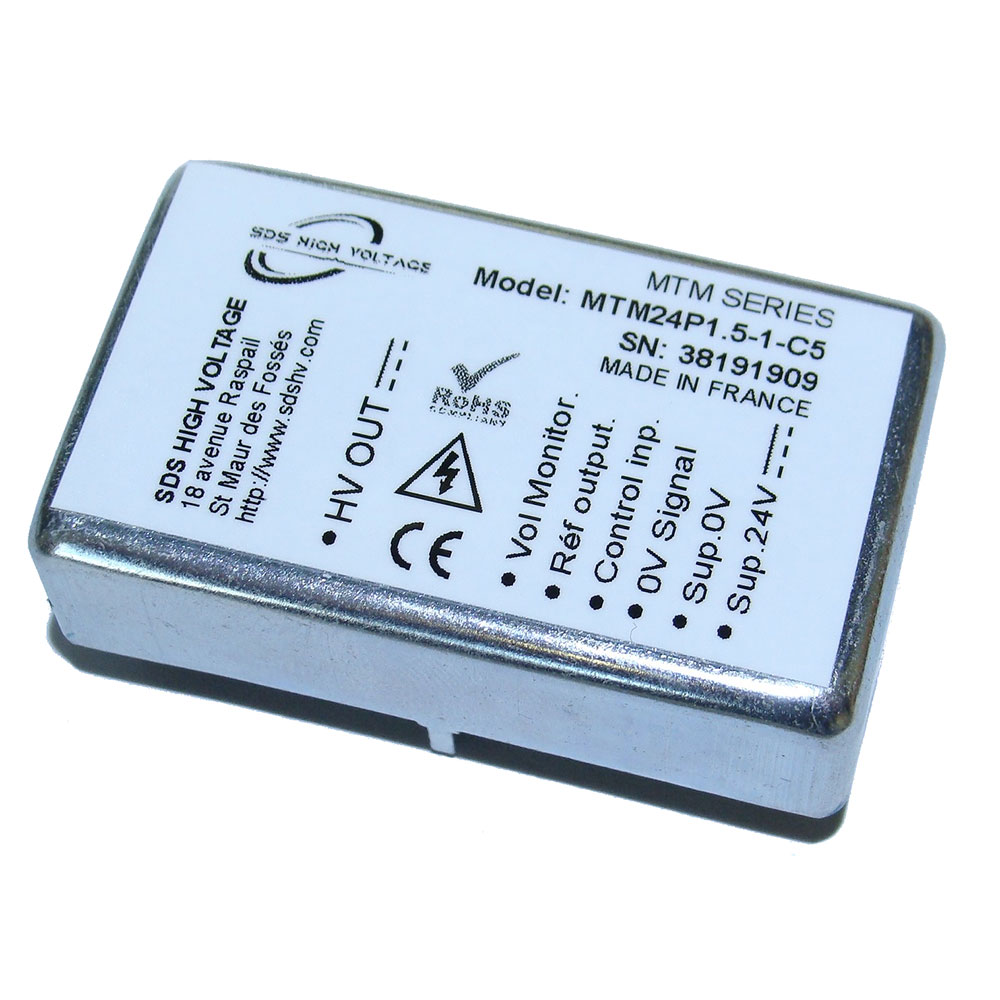

型號：
| MTM series selection guide | ||||||||
| # | Obsolete reference system | Current reference system | Vout | Pola- rity | lout/Pout | Vin | Control | Otption |
| #1 | MT12N601831-5F | MTM12N0.6-0.5-C5 | 600V | 0.83mA/0.5W | 12V | 5V | Pin | |
| #2 | MT12N601831-10F | MTM12N0.6-0.5-C10 | 10V | Pin | ||||
| #3 | MT12N601831-5F-W | MTM12N0.6-0.5-C5-L | 5V | Wire | ||||
| #4 | MT12N601831-10F-W | MTM12N0.6-0.5-C10-L | 10V | Wire | ||||
| #5 | MT12P601831-5F | MTM12P0.6-0.5-C5 | 十 | 5V | Pin | |||
| #6 | MT12P601831-10F | MTM12P0.6-0.5-C10 | 十 | 10V | Pin | |||
| #7 | MT12P601831-5F-W | MTM12P0.6-0.5-C5-L | 十 | 5V | Wire | |||
| #8 | MT12P601831-10F-W | MTM12P0.6-0.5-C10-L | 十 | 10V | Wire | |||
| #9 | MT15N601132-5F | MTM15N0.6-0.8-C5 | 1.33mA/0.8W | 15V | 5V | Pin | ||
| #10 | MT15N601132-10F | MTM15N0.6-0.8-C10 | 10V | Pin | ||||
規(guī)格參數：
| Parameters | Specifications | ||||||
| Input voltage Vin(pins 1&2) | 12Vdc ±0.5 or 15Vdc±0.5cor 24Vdc±1,according to the model. | ||||||
| Input current | At no load:15mA. At full load,from to 65mA to 100mA,according to the input voltage. | ||||||
| HVoutputVout (pin 7 or flying lead optional) | Programmable nominal voltage,refer to the Selection Guide for voltage ranges,accuracy:±0.2%at the max voltage. | ||||||
| Outpout voltage polarity | Fixed positive or negative,according to the model | ||||||
| Output voltage setting (pins 3,4 &5 | Option 1:via an external potentiometer,minimum 10kQ (use Ref.Volt- age pin 5) Option 2:via an external voltage 0/5V or 0/10V,according to the model. Note:input impedance of the control input (pin 4)=1MQ. | ||||||
| Max.output current lout | Refe to the Selection Guide. | ||||||
| Load Voltage regulation | ±0.01%of the full output voltage,no load to full load. | ||||||
| Line Voltage regulation | ±0.01%of the full output voltage over the specified input voltage range. | ||||||
| Ripple | Between 10mVto 40mVpeak-to-peak at full load,according to the model. | ||||||
| Temperature coefficient | 100ppm/℃ over the temperature range O to 50℃. | ||||||
| HV monitoring output (Vmon) (pin 6 | +1V/kV or-1V/kV according to the polarity of the model,accuracy:±2%, output impedance =200MQ,TC=100ppm/°C(passive voltage divider). | ||||||
| Reference Voltage(pin 3) | -option 1:5V, -option 2:10V, accuracy:±0.05%,TC50ppm/℃,max output current:1mA. | ||||||
| Operating temperature range | -40℃ to+50℃. | ||||||
| Storage temperature range | -40℃ to+70℃. | ||||||
| Safeguards | -Arc and short circuit protection. -Protected against reverse Vin. | ||||||
| Option |  -Flying lead for the HV output instead of the pin 7 (suffix“L”) | ||||||
| Package Configuration | |||||||
| Case material | Tin steel plate Thickness 0.5mm | ||||||
| Case dimensions | L46.0xW12.0x24.6mm | ||||||
| Pins | Through round pins,diameter:0.46mm,length:3mm,spacing: 2.54mmm.Option:flying wire for the HV output | ||||||
| PCB mounting | 4 mounting rabs,length:5mm,thickness:0.5mm | ||||||
| Weight | 35g | ||||||
| Insulation | Fully potted with an ULepoxy resin | ||||||
| Pins function | |||||||
| Line input | #1:Supply #2:0V supply | ||||||
| HV setting | #3:0V signal #4:Control input #5:Voltage reference | ||||||
| HV monitor | #6:Voltage monitor | ||||||
| HV output | #7:output | ||||||
