- Vin: 15Vdc or 24Vdc
- Vout: 0 to 1kV, 2kV or 4kV
- Pout: 1W, 2W or 4W

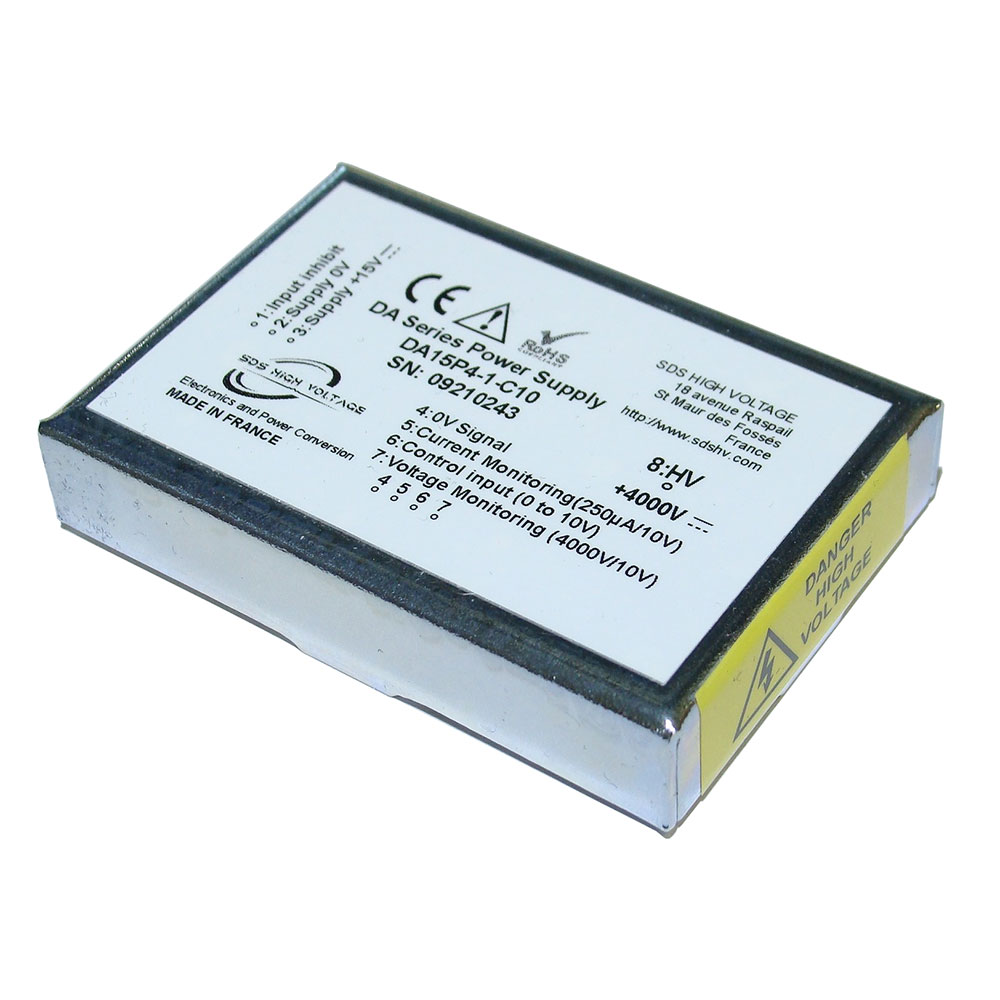

DA系列特別適用于控制需要高偏置電壓和電流的光子探測器。工業、集成商和研究人員將受益于該裝置的小尺寸、輕量化設計、出色的電壓調節和減少的殘余波動。
特點：
高度小，重量輕
嚴格的線路/負載調節
低紋波(0.005% p. to p.)
PCB平裝
輸出限流保護
金屬屏蔽，噪音低
可調從0到全輸出
低紋波(< 0.003% p. to p.)
電壓和電流緩沖監測
規格參數：
| Parameters | Specifcations | ||
| Input voltageVin (pins 283) | 15Vdc±1.5Vdc or 24Vdc±2Vdc,according to type | ||
| Input current | Example for a 15Vdc,output 6000V,1mA model:inhibition mode:27mA atno load &HV=1500V:46mA at full load:260mA | ||
| HVoutputVout (pin 8) | 0 to 1000V through O to4000V according to type | ||
| Polarity | Fixed positive [DAP]ornegative[DAN];refer to the Selection Guide | ||
| HVsetting (pins 4&6) | ·Option 1:via externalvoltage source 0/5V±0.1%at full scale,and input impedance=94kQ -Option 2:via external voltage source 0/10V±0.1%at full scale,and input impedance=187kO | ||
| Max.outputcurrent lout | Limited to 110%of nominal current;referto the Selection Guide | ||
| Load voltage regulation | ±0,01%of full output voltagefor no loadto full load | ||
| Line voltage regulation | ±0,01%of full output voltage over specified input voltage range | ||
| Residual ripple | 0,005%peak-to-peak at full load | ||
| Temperature coefficient | 100ppm/℃ | ||
| Output HV monitoring (pin 7) (still operating in inhibition mode) | ·Option 1:analog 0/+5Vbufferised output signal,accuracy±0.2% ·Option 2:analog 0/+10V bufferised output signal,accuracy±0.2% Output impedance=1kO風 Temperature coeffcient:100ppm/℃ | ||
| Output current monitoring | ·Option1:analog 0/+5Vbufferised output signal,accuracy±2% | ||
| (pin5) | +Option2:analog 0/+10V bufferised output signal,accuracy±2% | ||
| (still operating in inhibition | Outputimpedance=1kQ | ||
| mode) | Temperature coefficient:100ppm/C | ||
| HV power ON/OFF | To disable(opened remote interlock)or enable (closedremote interlock) | ||
| Operating temperature | Refer to Derating Curve | ||
| Storagetemperature | -10℃to+70℃ | ||
| Safeguards | ·Protected against reverse Vin +Soft start feature:the start is guaranteed with no overshoot +Auto inhibition if Tcase>75℃ +HV setting internally limited to 10.6V for the 10Vversion and to 5.3Vfor the 5Vversion |
型號：
| Vout | lout/Pout | Win | Polarity | HV monitoring | former relrence | NEWHEFEHENCE |
| 4000V | 1.00mA/4W | 24V | 十 | 0/10V | DA24P402102-10 | DA24P4-4-C10 |
| 0/5V | DA24P402102-5 | DA24P4-4-C5 | ||||
| 0/10V | DA24N402102-10 | DA24N4-4-C10 | ||||
| 0/5V | DA24N402102-5 | DA24N4-4-C5 | ||||
| 0.50mA/2W | 24V | 十 | 0/10V | DA24P402501-10 | DA24P4-2-C10 | |
| 0/5V | DA24P402501-5 | DA24P4-2-C5 | ||||
| 0/10V | DA24N402501-10 | DA24N4-2-C10 | ||||
| 0/5V | DA24N402501-5 | DA24N4-2-C5 | ||||
| 0.25mA/1W | 15V | 十 | 0/10V | DA15P402251-10 | DA15P4-1-C10 | |
| 0/5V | DA15P402251-5 | DA15P4-1-C5 | ||||
| 0/10V | DA15N402251-10 | DA15N4-1-C10 | ||||
| 0/5V | DA15N402251-5 | DA15N4-1-C5 | ||||
| 24V | 十 | 0/10V | DAP24402251-10 | DA24P4-1-C10 | ||
| 0/5V | DAP24402251-5 | DA24P4-1-C5 | ||||
| 0/10V | DAN24402251-10 | DA24N4-1-C10 | ||||
| 0/5V | DAN24402251-10 | DA24N4-1-C5 | ||||
| 2000V | 2.00mA/4W | 15V | 十 | 0/10V | DA15P202202-10 | DA15P2-4-C10 |
| 0/5V | DA15P202202-5 | DA15P2-4-C5 | ||||
| 0/10V | DA15N202202-10 | DA15N2-4-C10 | ||||
| 0/5V | DA15202202-5 | DA15N2-4-C5 | ||||
| 24V | 十 | 0/10V | DA24P202202-10 | DA24P2-4-C10 | ||
| 0/5V | DA24P202202-5 | DA24P2-4-C5 | ||||
| 0/10V | DA24N202202-10 | DA24N2-4-C10 | ||||
| 0/5V | DA24N202202-5 | DA24N2-4-C5 | ||||
| 1.00mA/2W | 15V | 十 | 0/10V | DA15P202102-10 | DA15P2-2-C10 | |
| 0/5V | DA15P202102-5 | DA15P2-2-C5 | ||||
| 0/10V | DA15N202102-10 | DA15N2-2-C10 | ||||
| 0/5V | DA15N202102-5 | DA15N2-2-C5 | ||||
| 24V | 十 | 0/10V | DA24P201102-10 | DA24P2-2-C10 | ||
| 0/5V | DA24P201102-5 | DA24P2-2-C5 | ||||
| 0/10V | DA24N201102-10 | DA24N2-2-C10 | ||||
| 0/5V | DA24N201102-5 | DA24N2-2-C5 | ||||
| 0.50mA/IW | 15V | 十 | 0/10V | DA15P202501-10 | DA15P2-1-C10 | |
| 0/5V | DA15P202501-5 | DA15P2-1-C5 | ||||
| 0/10V | DA15N202501-10 | DA15N2-1-C10 | ||||
| 0/5V | DA15N202501-5 | DA15N2-1-C5 | ||||
| 24V | 十 | 0/10V | DA24P202501-10 | DA24P2-1-C10 | ||
| 0/5V | DA24P202501-5 | DA24P2-1-C5 | ||||
| 0/10V | DA24N202501-10 | DA24N2-1-C10 | ||||
| 0/5V | DA24N202501-5 | DA24N2-1-C5 | ||||
| 1000V | 4.00mA/4W | 15V | 十 | 0/10V | DA15P102402-10 | DA15P1-4-C10 |
| 0/5V | DA15P102402-5 | DA15P1-4-C5 | ||||
| 0/10V | DA15N102402-10 | DA15N1-4-C10 | ||||
| 0/5V | DA15N102402-5 | DA15N1-4-C5 | ||||
| 24V | 十 | 0/10V | DA24P102402-10 | DA24P1-4-C10 | ||
| 0/5V | DA24P102402-5 | DA24P1-4-C5 | ||||
| 0/10V | DA24N102402-10 | DA24N1-4-C10 | ||||
| 0/5V | DA24N102402-5 | DA24N1-4-C5 | ||||
| 2.00mA/2W | 15V | 十 | 0/10V | DA15P102202-10 | DA15P1-2-C10 | |
| 0/5V | DA15P102202-5 | DA15P1-2-C5 | ||||
| 0/10V | DA15N102202-10 | DA15N1-2-C10 | ||||
| 0/5V | DA15N102202-5 | DA15N1-2-C5 | ||||
| 24V | 十 | 0/10V | DA24P102202-10 | DA24P1-2-C10 | ||
| 0/5V | DA24P102202-5 | DA24P1-2-C5 | ||||
| 0/10V | DA24N102202-10 | DA24N1-2-C10 | ||||
| 0/5V | DA24N102202-5 | DA24N1-2-C5 | ||||
| 1mA/1W | 15V | 十 | 0/10V | DA15P102102-10 | DA15P1-1-C10 | |
| 0/5V | DA15P102102-5 | DA15P1-1-C5 | ||||
| 0/10V | DA15N102102-10 | DA15N1-1-C10 | ||||
| 0/5V | DA15N102102-5 | DA15N1-1-C-5 | ||||
| 24V | 十 | 0/10V | DA24P102102-10 | DA24P1-1-C10 | ||
| 0/5V | DA24P102102-5 | DA24P1-1-C5 | ||||
| 0/10V | DA24N102102-10 | DA24N1-1-C10 | ||||
| 0/5V | DA24N102102-5 | DA24N1-1-C5 |
